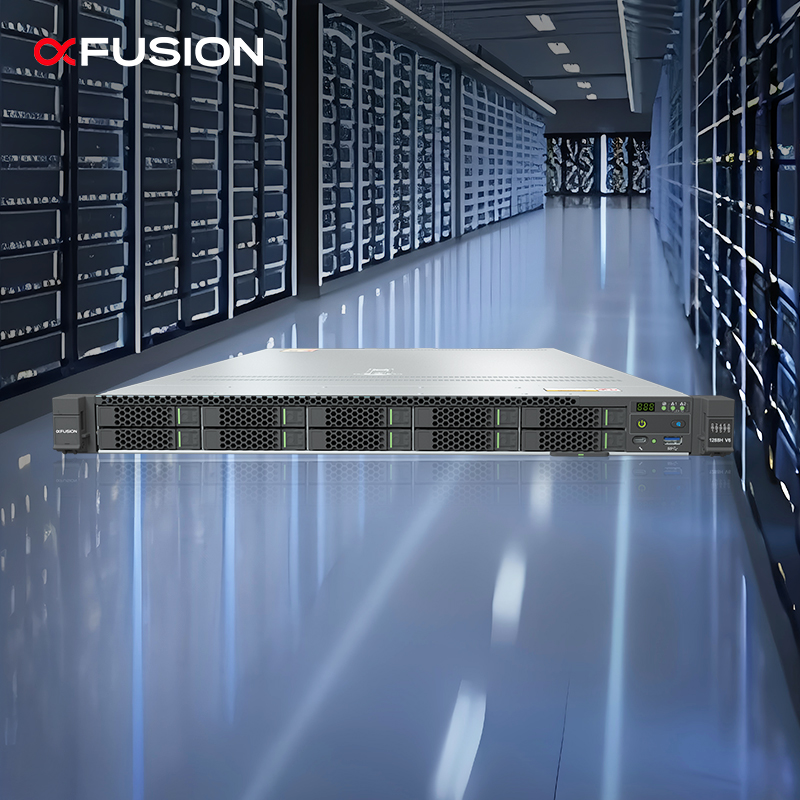

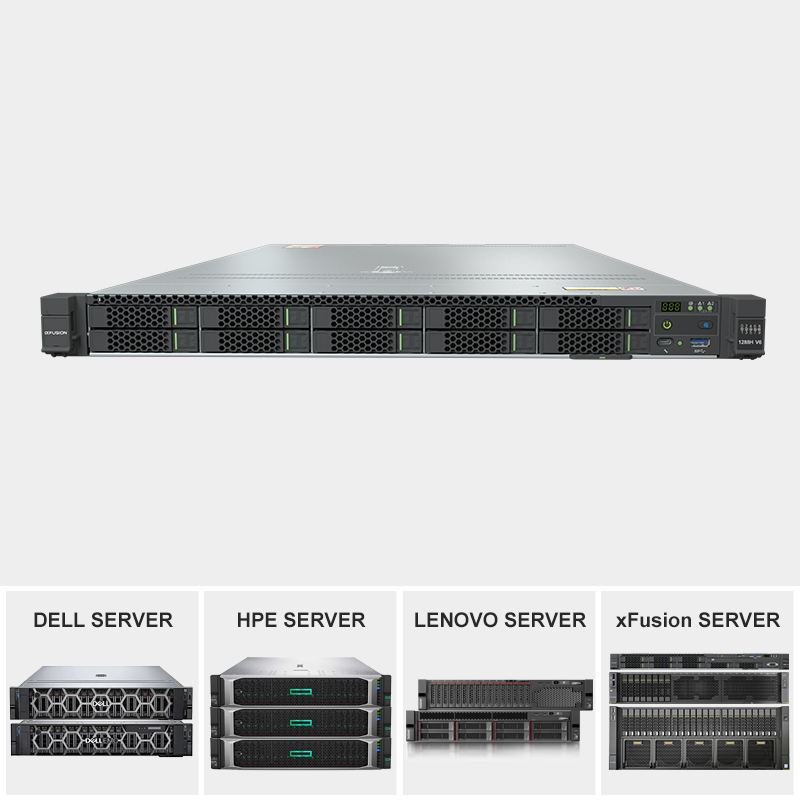

The FusionServer 1288H V6 is a 1U 2-socket rack server that is suitable for high-density workloads such as cloud computing, virtualization, high-performance computing (HPC), and big data processing. Designed to improve data center space utilization, the 1288H V6 can be configured with 2 Intel® Xeon® Scalable processors, 32 DDR4 RAM slots, and flexible storage options including 4 x 3.5" or 10 x 2.5" local storage resources (configurable with 4/10 NVMe SSD drives). It integrates DEMT intelligent power management and FDM intelligent fault management to effectively reduce operating costs and improve return on investment.

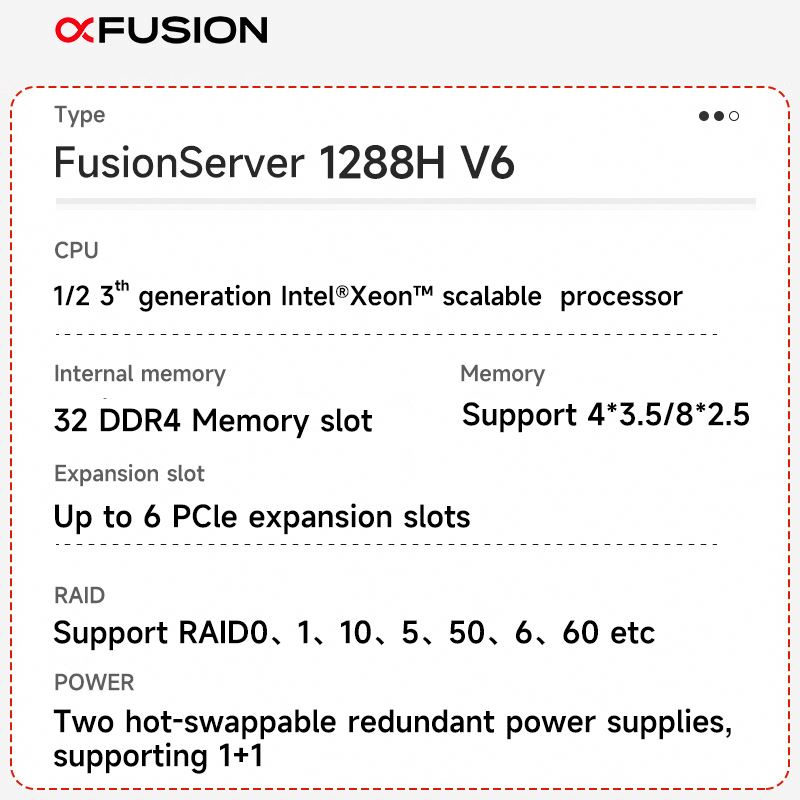

| Server Model | FusionServer 1288H V6 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Drive Bays |
Supports various configurations and hot swappable: • 10 x 2.5-inch drives (6–10 NVMe SSDs and 0–4 SAS/SATA) • 10 x 2.5-inch drives (2–4 NVMe SSDs and 6–8 SAS/SATA) • 10 x 2.5-inch SAS/SATA/SSD drives • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives • Dual M.2 SSDs flash storage |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |

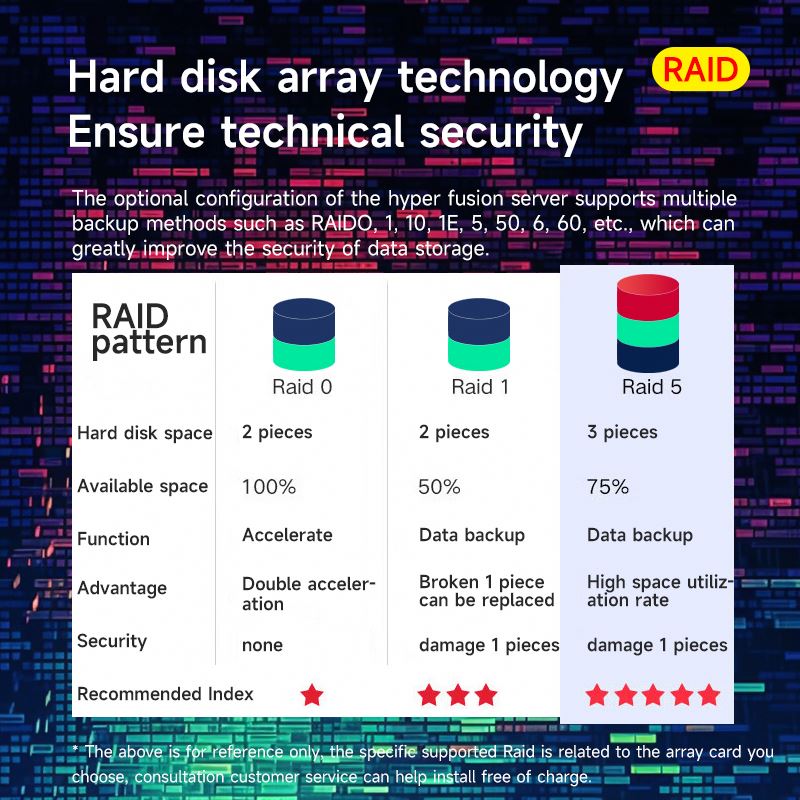

| Storage Controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60; optional supercapacitor for cache protection; RAID migration and self-diagnosis |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Dimensions | 43.5 mm x 447 mm x 790 mm (standard chassis) |
| Power Supply Units |
• 900W/2000W AC Platinum/Titanium PSUs • 1500W AC Platinum PSUs • 1500W 380V HVDC PSUs • 1200W -48V to -60V DC PSUs |
