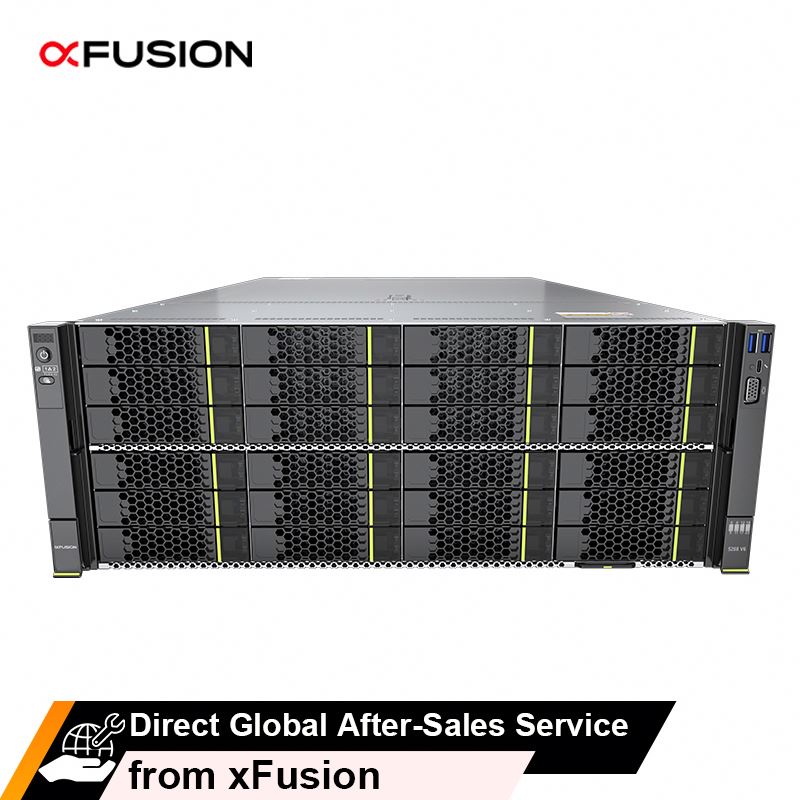

FusionServer 5288 V6 4U Rack Server
FusionServer 5288 V6 is a 4U 2-socket rack server that meets service requirements such as hot, warm, and cold data tiered deployment and historical data archiving. With its efficient design, FusionServer 5288 V6 ensures excellent computing performance and provides flexible and ultra-large local storage expansion capabilities, reducing data storage costs. The 5288 V6 can be configured with two Intel Xeon scalable processor, 32 DDR4 DIMMs, and 44 3.5-inch + 4 NVMe SSDs in a 4 U space. Integrates patented technologies such as DEMT intelligent power management and FDM intelligent fault management, and can be configured with FusionDirector full-lifecycle management software, effectively reducing OPEX and improving ROI.

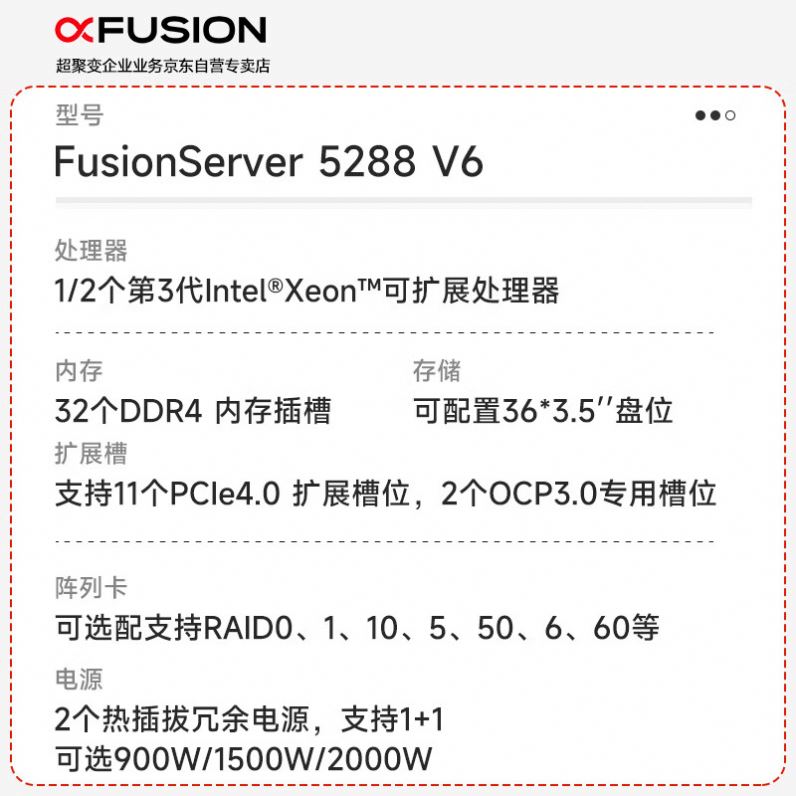

| Server Model | FusionServer 5288 V6 |
| Form Factor | 4U Rack Server |
| Processors | 1/2 3rd Generation Intel® Xeon® scalable processor (Ice Lake) (8300 / 6300 / 5300 / 4300 Series) , up to 270W |
| Local Storage |
Various hard disk configurations supported. Hot swappable: • 36 to 44 3.5-inch SAS/SATA HDDs and 4 NVMe SSDs • 24 x 3.5-inch SAS/SATA front disks • 4 3.5-inch SAS/SATA internal disks • 16 3.5-inch SAS/SATA + four 2.5-inch SAS/SATA/NVMe rear disks • 12 3.5-inch SAS/SATA + eight 2.5-inch rear disks • Flash: Dual M.2 SSDs |

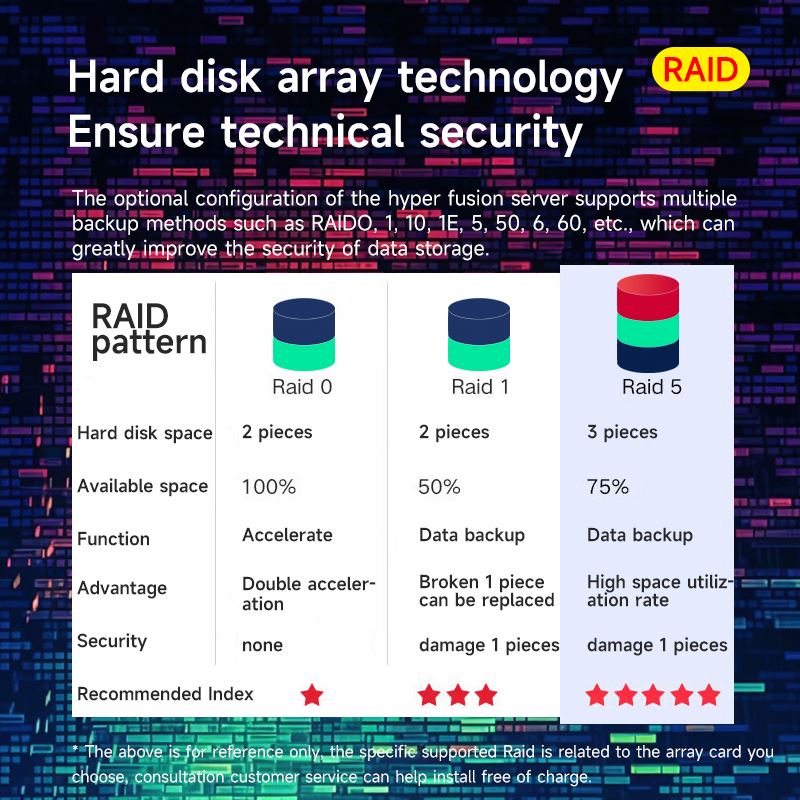

| RAID Support | RAID 0, 1, 5, 50, 6, 60; cache supercapacitor protection, roaming, self-diagnosis, remote configuration. |
| Network | OCP 3.0 NIC; Two FLEX I/O card slots; Supports hot swap. |
| PCIe Expansion | Maximum 11 PCIe 4.0 slots, including dedicated RAID and FLEX I/O slots. |
| Chip Set | Intel® C621A |
| Fan Modules | Four hot-swappable fans, supporting N+1 redundancy |
| Dimensions | 175 mm (H) x 447 mm (W) x 790 mm (D) |
| Power Supply | 2 redundant hot-swappable PSUs (1+1 mode); Platinum/Titanium options: 900W, 1500W, 2000W. |
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
