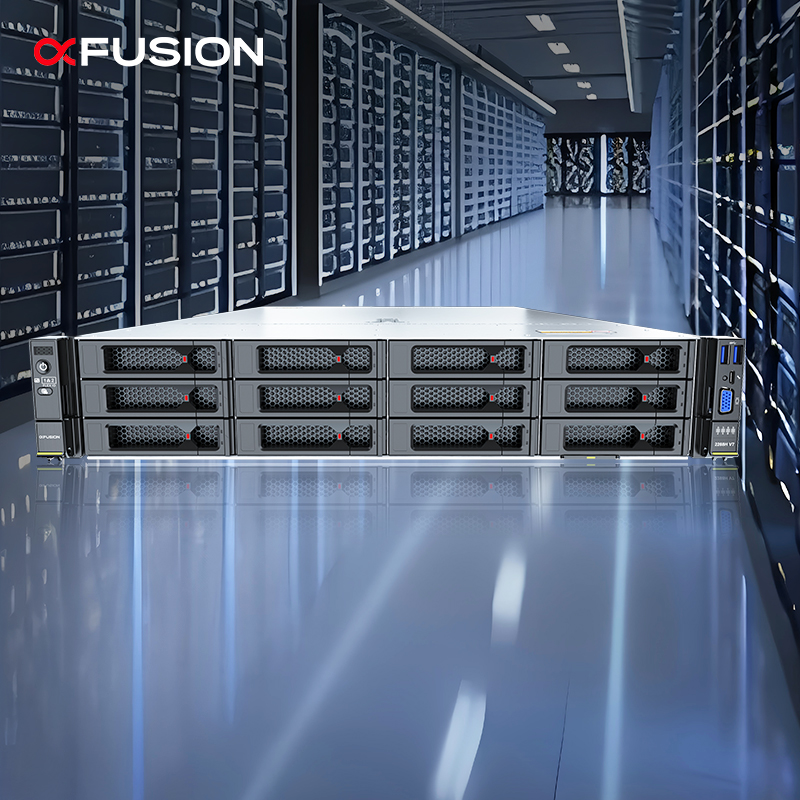

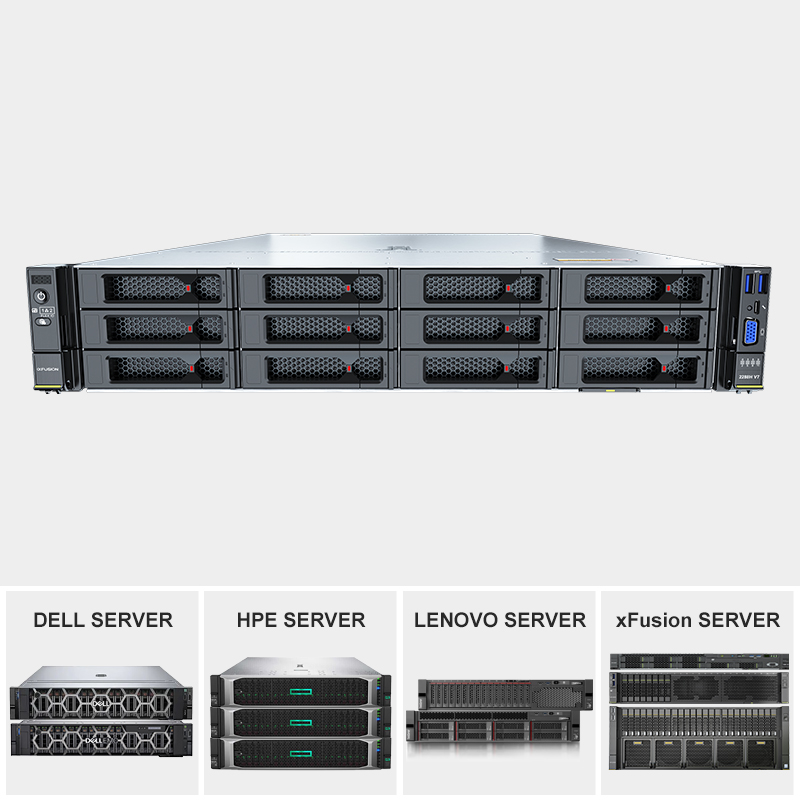

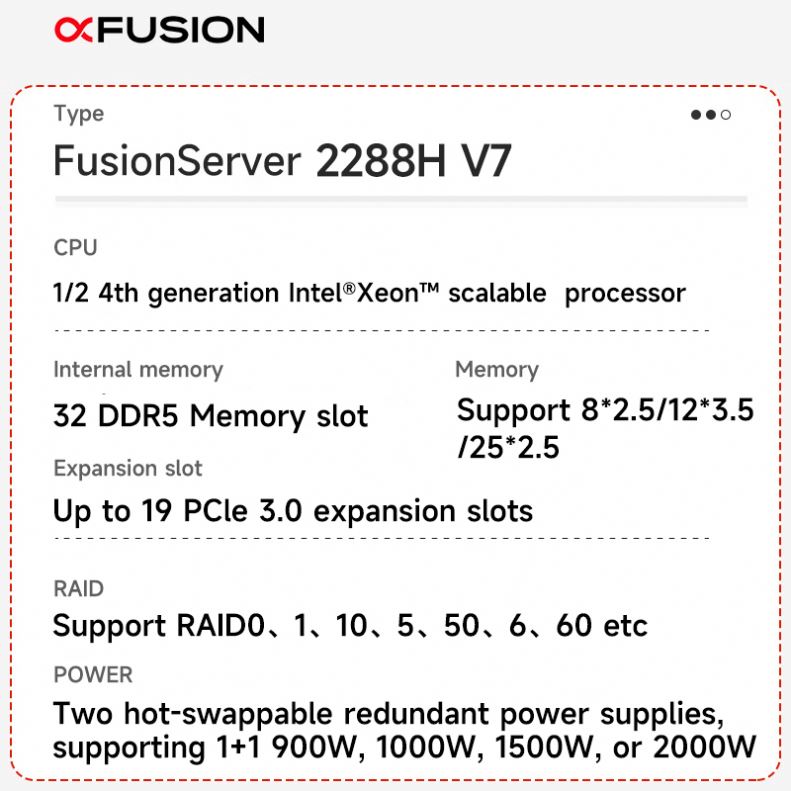

| Server Model | FusionServer 2288H V7 |
| Form Factor | 2U rack server |
| Processors | 1 or 2 x 4th Gen Intel Xeon Scalable processors (Sapphire Rapids) with TDP up to 350 W per processor |
| Local Storage | Hot-swappable drives supported: • 8 to 35 x 2.5" SAS/SATA/SSD • 12 to 20 x 3.5" SAS/SATA • 4/8/16/24 x NVMe SSDs • 36 x E1.S SSDs* • Up to 45 x 2.5" drives, or 34 x full NVMe SSDs • 2 x M.2 SSDs, hardware RAID, and hot swap |

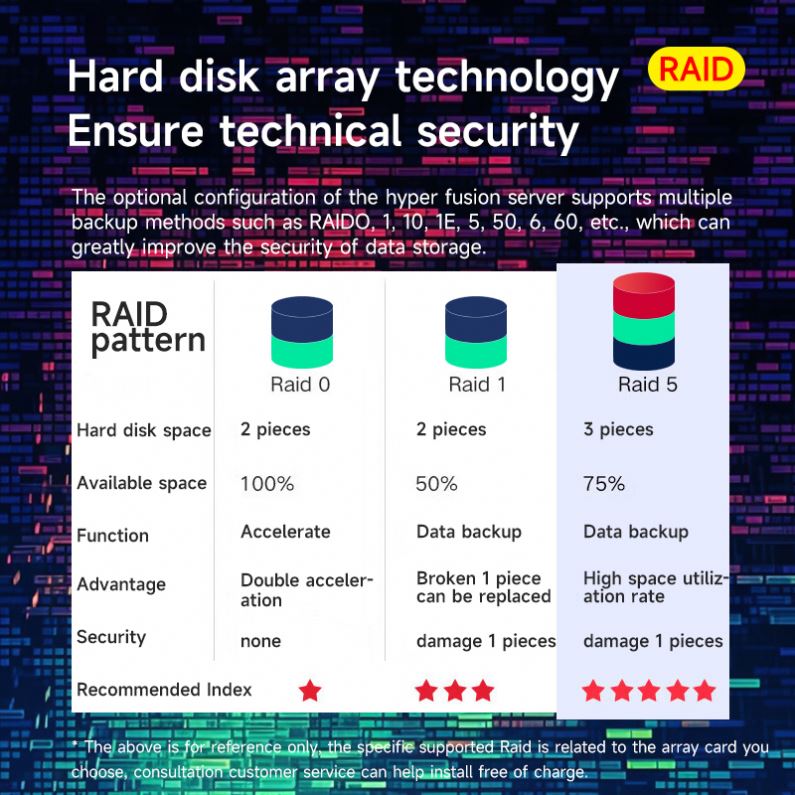

| RAID Support | RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, and self-diagnosis |
| PCIe Expansion | Up to 19 x PCIe slots: 2 x FlexIO slots for OCP 3.0 NICs and 17 x standard PCIe expansion slots (14 slots support PCIe 5.0) |
| GPU Accelerator | 4 x dual-width or 14 x single-width GPU cards |
| Operating Systems | FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler |
| Power Supply | 2 x hot-swappable PSUs (1+1 redundancy): • 900W/1500W/2000W/3000W AC Platinum/Titanium options • 1500W 380V HVDC options • 1200W -48V to -60V DC options |
| Dimensions | 86.1 mm x 447 mm x 798 mm (3.39 in. x 17.60 in. x 31.42 in.) |
