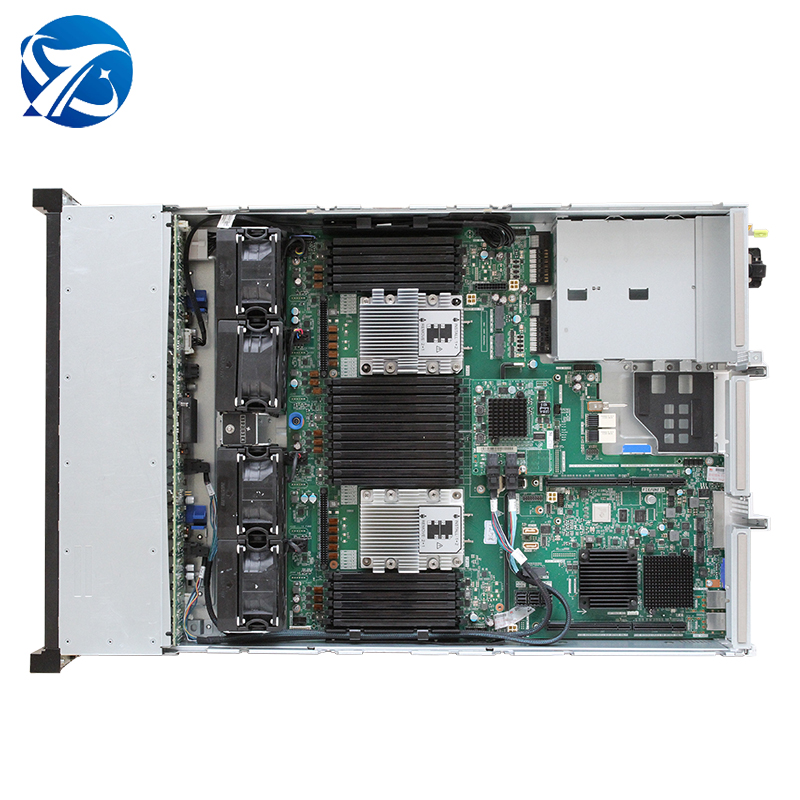

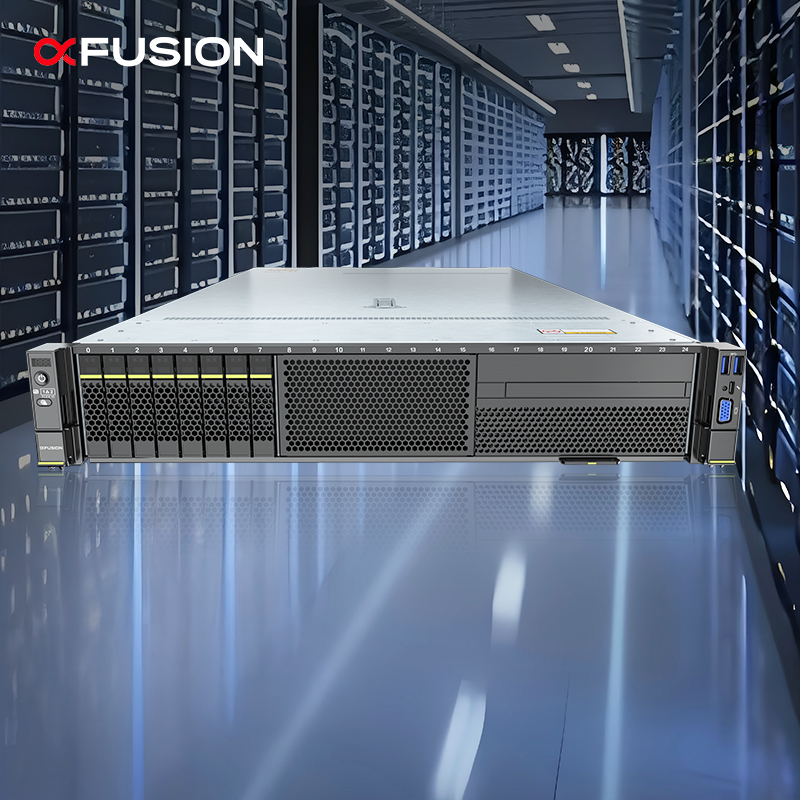

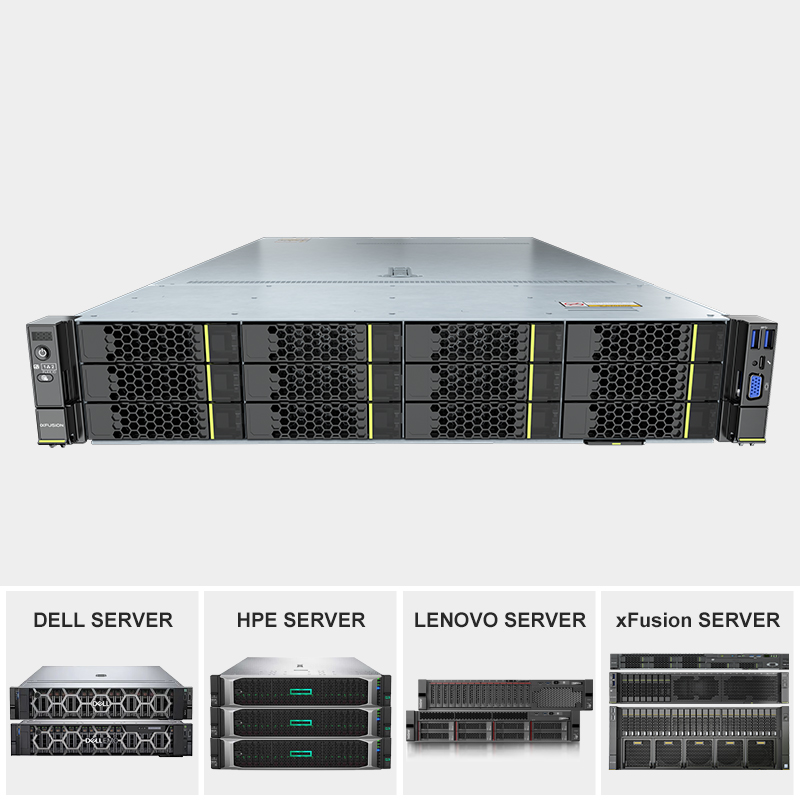

FusionServer 2288H V6 2U rack server

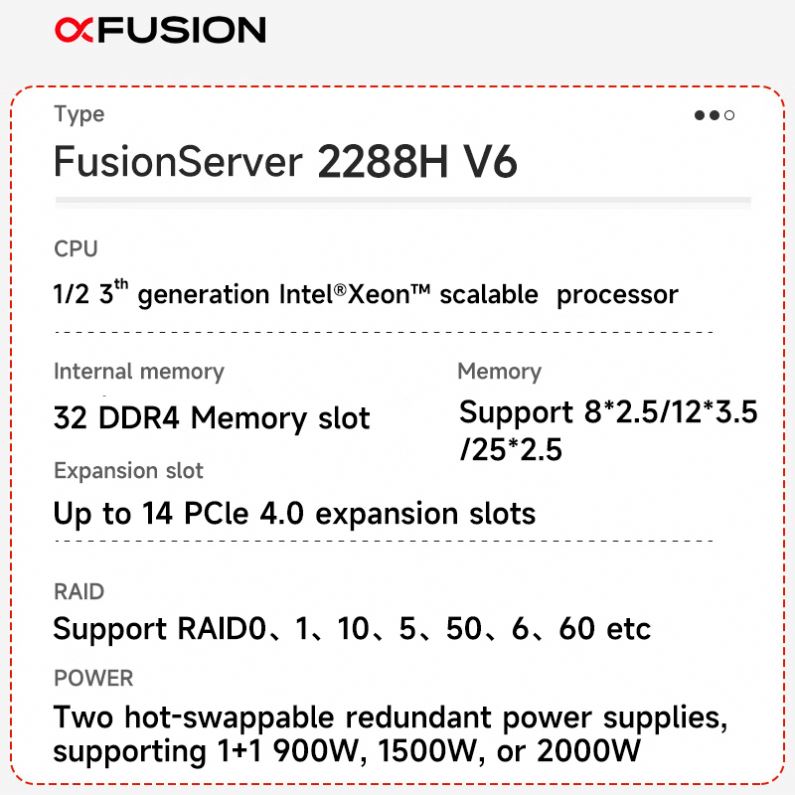

The FusionServer 2288H V6 is a 2U 2-socket rack server with flexible configurations, which can be widely used for cloud computing, virtualization, database, and big data workloads. It can be configured with 2-socket Intel® Xeon® Scalable processors, 32 DDR4 RAM, 14 PCIe expansion slots, and supports large local storage resources.
It integrates patented technologies such as DEMT, intelligent power consumption management, FDM intelligent fault management, and optional FusionDirector full lifecycle management software, which can effectively reduce operations cost and improve return on investment.
| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: Dual M.2 SSDs |

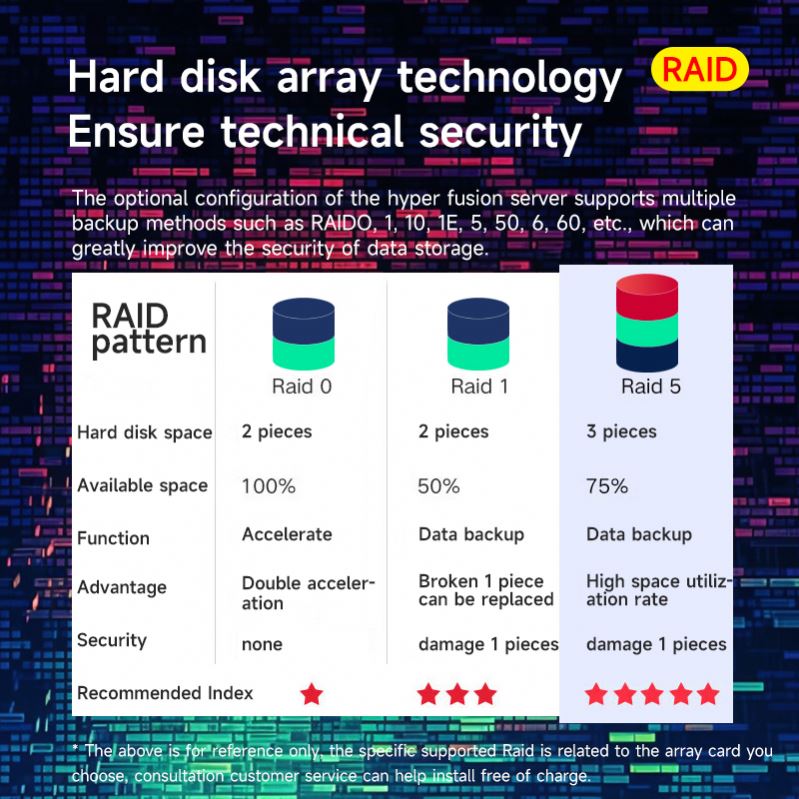

| RAID Support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data protection, RAID level migration, drive roaming, and remote configuration. |
| Network | Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapters. Hot swappable function supported. |
| PCIe Expansion | Maximum of fourteen PCIe 4.0 slots, including one for RAID card, two FlexIO for OCP 3.0, and eleven standard PCIe 4.0 slots. |
| Management | iBMC chip integrates one GE management port. Supports Redfish, SNMP, and IPMI 2.0. Optional FusionDirector software for intelligent lifecycle management. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Power Supply | Two hot-swappable PSUs in 1+1 redundancy. Options: 900W, 1200W, 1500W, 2000W, or 3000W (Platinum/Titanium/HVDC/DC). |
| Dimensions | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
As a leading integrated IT solutions provider, we combine cutting-edge manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end-to-end infrastructure services. Our team of highly skilled professionals includes certified engineers with expertise in designing, deploying, and maintaining mission-critical IT environments.
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
