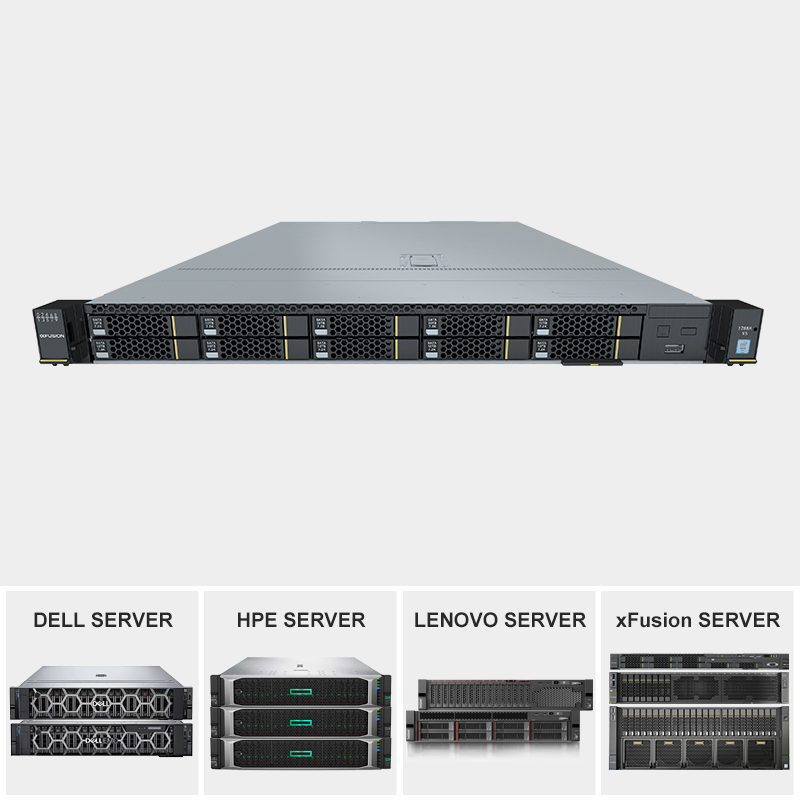

FusionServer 1288H V5 is designed for the Internet, Internet Data Center (IDC), cloud computing, enterprise market, and telecom business applications. It is a new generation of 1U 2-socket rack servers suitable for IT core business, virtualization, scientific computing, and other complex workloads. It offers low energy consumption, strong expansion capabilities, high reliability, and easy management.
| Server Model | FusionServer 1288H V5 |
| Form Factor | 1U Rack Server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Drive Bays |
• 10 x 2.5-inch drives (NVMe SSDs / SAS / SATA) • 8 x 2.5-inch SAS/SATA/SSD drives • 4 x 3.5-inch SAS/SATA/SSD drives • Supports Flash storage: Dual M.2 SSDs |
| RAM | 32 DDR4 DIMMs, up to 3,200 MT/s; 16 Optane™ PMem 200 series, up to 3,200 MT/s |
| Storage Controllers | Supports RAID 0, 1, 10, 5, 50, 6, or 60; optional supercapacitor for power failure protection; drive roaming and self-diagnosis. |
| I/O & Ports | LOM: 2 x 10GE + 2 x GE ports |
| Dimensions | 43.5 mm x 447 mm x 790 mm (Height X Width X Depth) |
| Power Supply | 900W / 1200W / 1500W / 2000W AC Platinum/Titanium PSUs; Supports HVDC and DC configurations. |
